Example Diagrams

Professional architecture diagrams created with AI in seconds

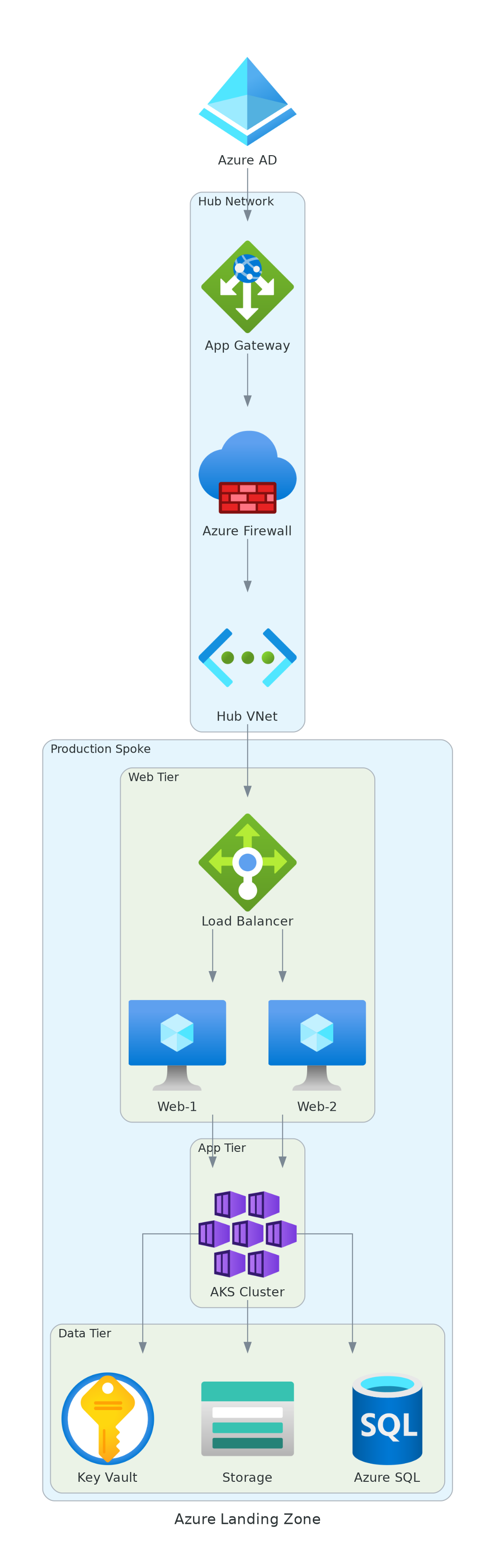

Azure Landing Zone

Enterprise-grade Azure landing zone with hub-spoke topology, management groups, and comprehensive policy governance framework.

Azure Enterprise

AWS Serverless API

Modern serverless architecture with API Gateway, Lambda functions, DynamoDB, and S3 for infinitely scalable applications.

AWS Serverless

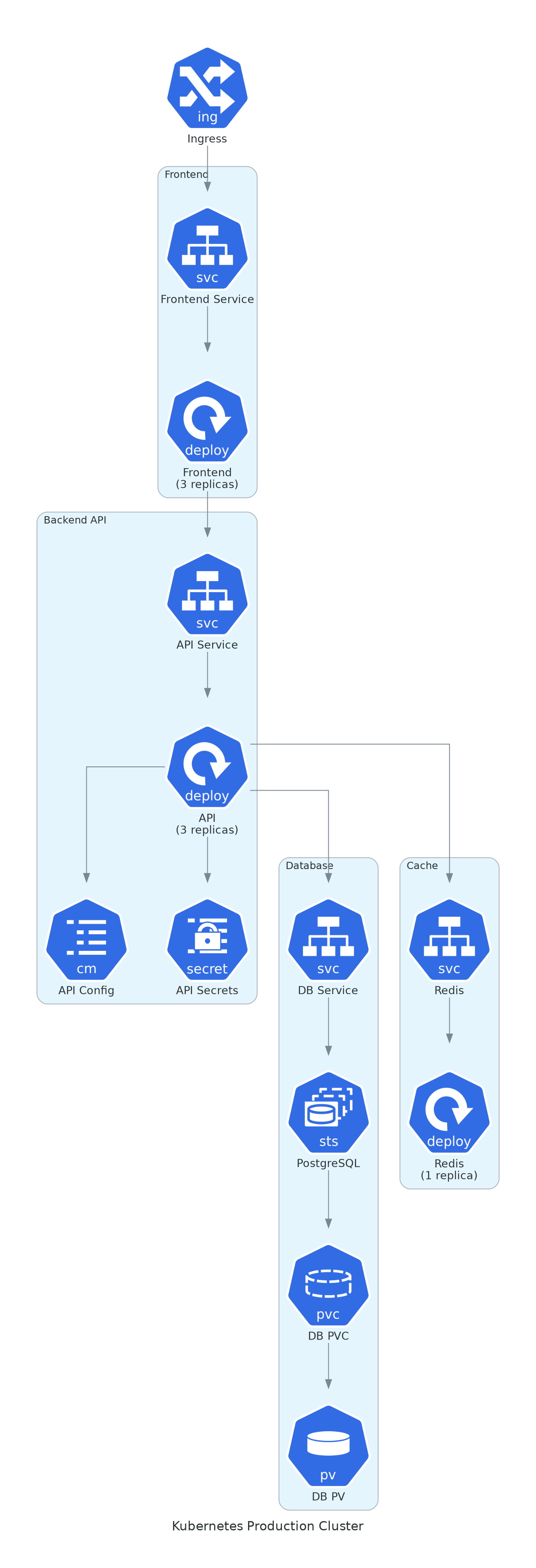

Kubernetes Production Cluster

Production-ready K8s setup with ingress controller, microservices, StatefulSets, persistent volumes, and complete config management.

Kubernetes DevOps

GCP Data Pipeline

Real-time data pipeline with Cloud Pub/Sub, Dataflow streaming, BigQuery analytics, and Cloud Storage for petabyte-scale workloads.

GCP Data

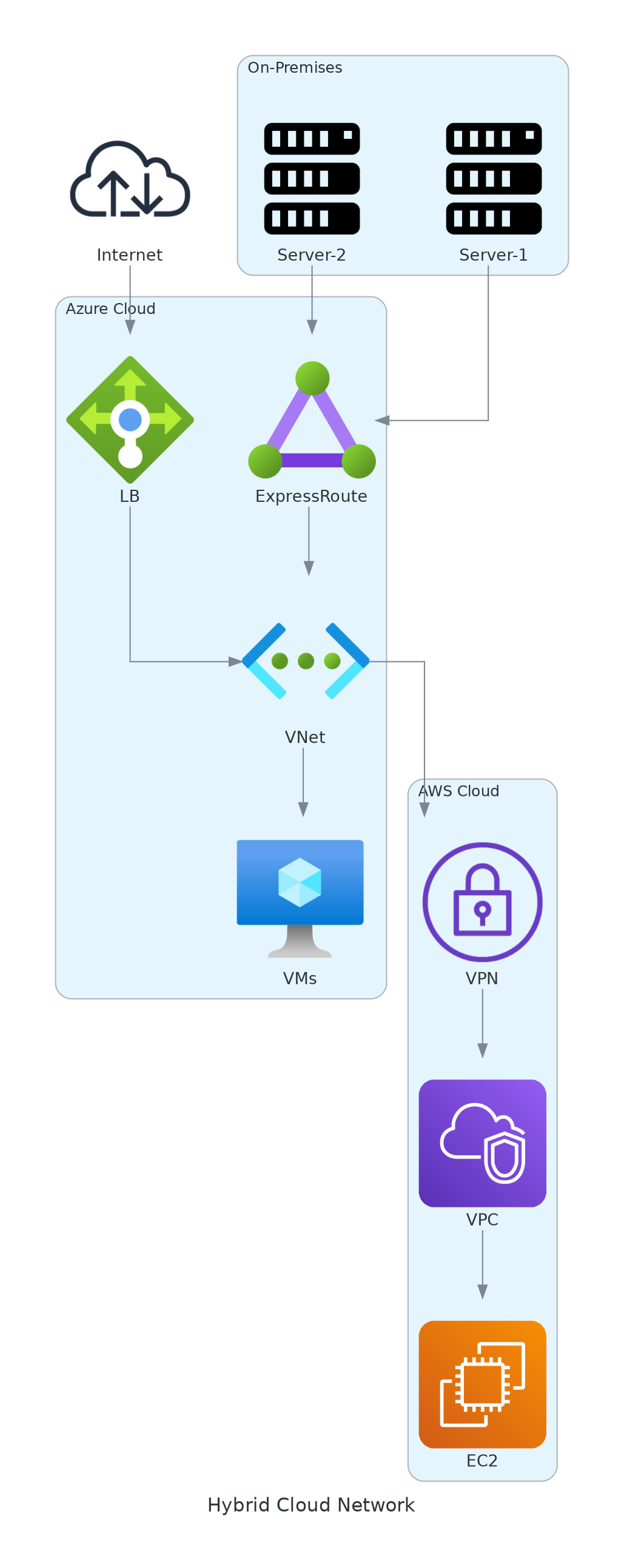

Hybrid Cloud Network

Multi-cloud network architecture with ExpressRoute, VPN connections, and seamless integration between Azure, AWS, and on-premises infrastructure.

Hybrid Network

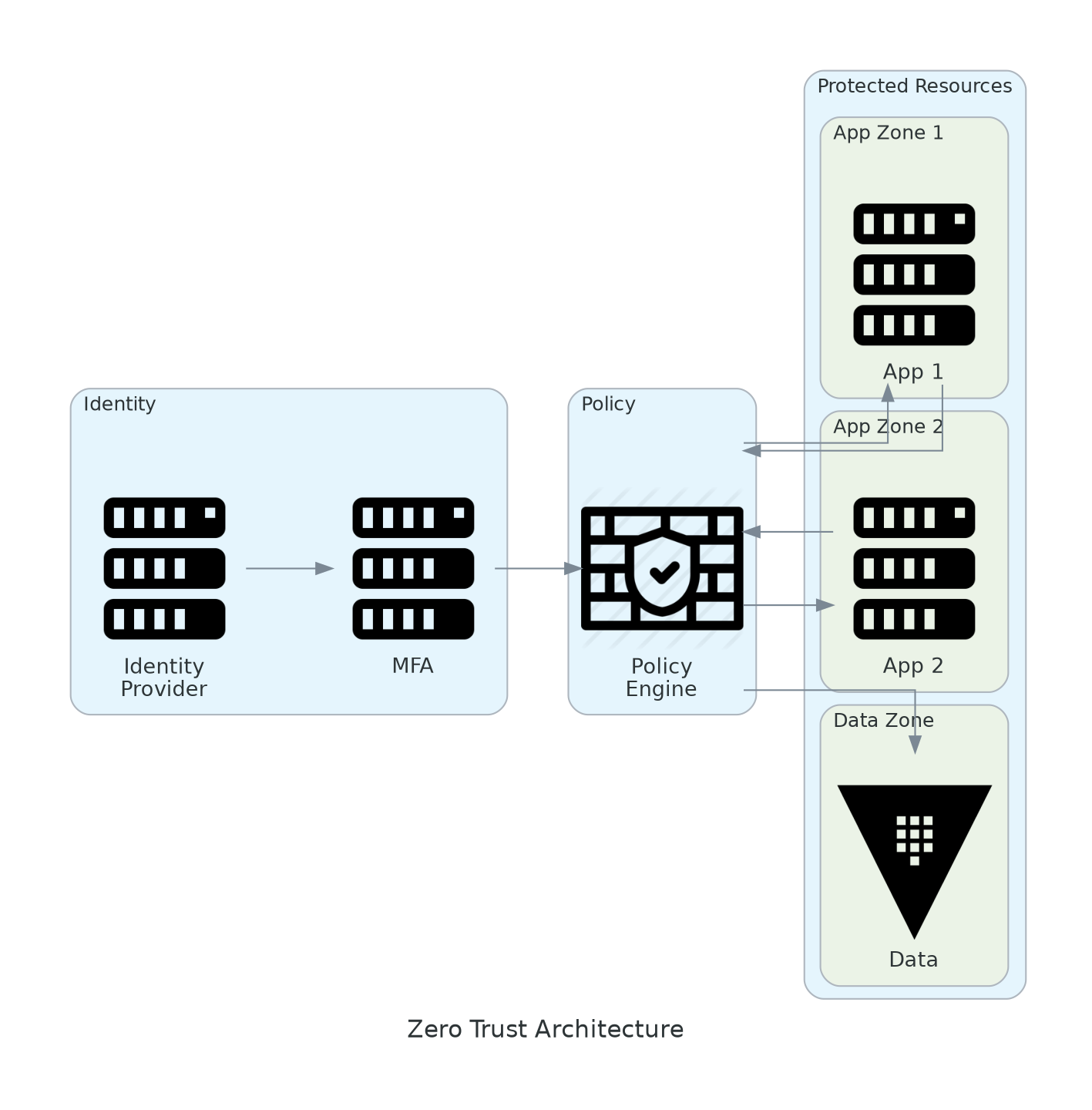

Zero Trust Architecture

Modern zero-trust security model with identity-based access control, micro-segmentation, continuous verification, and encrypted data zones.

Security ZeroTrust

All diagrams generated by AI in under 30 seconds

Start Creating Diagrams
